Combating Complex Overburden: The Integrated Combo Drilling Strategy of the CMR1000A
Geological exploration is rarely a smooth process. On professional forums like r/Geotech and r/mining, geologists and field engineers frequently vent their frustration over "nightmare formations." Thick, loose, highly weathered overburden, erratic gravel layers, moving sand beds, and deeply buried hard rock targets are notorious for destroying drilling schedules.
When facing these highly complex formations, traditional single-method exploration rigs run into severe operational bottlenecks:
- Pure Diamond Coring: Using high-cost diamond bits to drill through loose, abrasive gravel overburden results in extreme bit wear, fluid loss, continuous borehole collapse, and poor core recovery.
- Standard Percussion Drilling: While fast in loose upper layers, percussion drilling cannot provide the unbroken rock core required for definitive resource calculation and geological block modeling when it hits the deeper mineral zone.

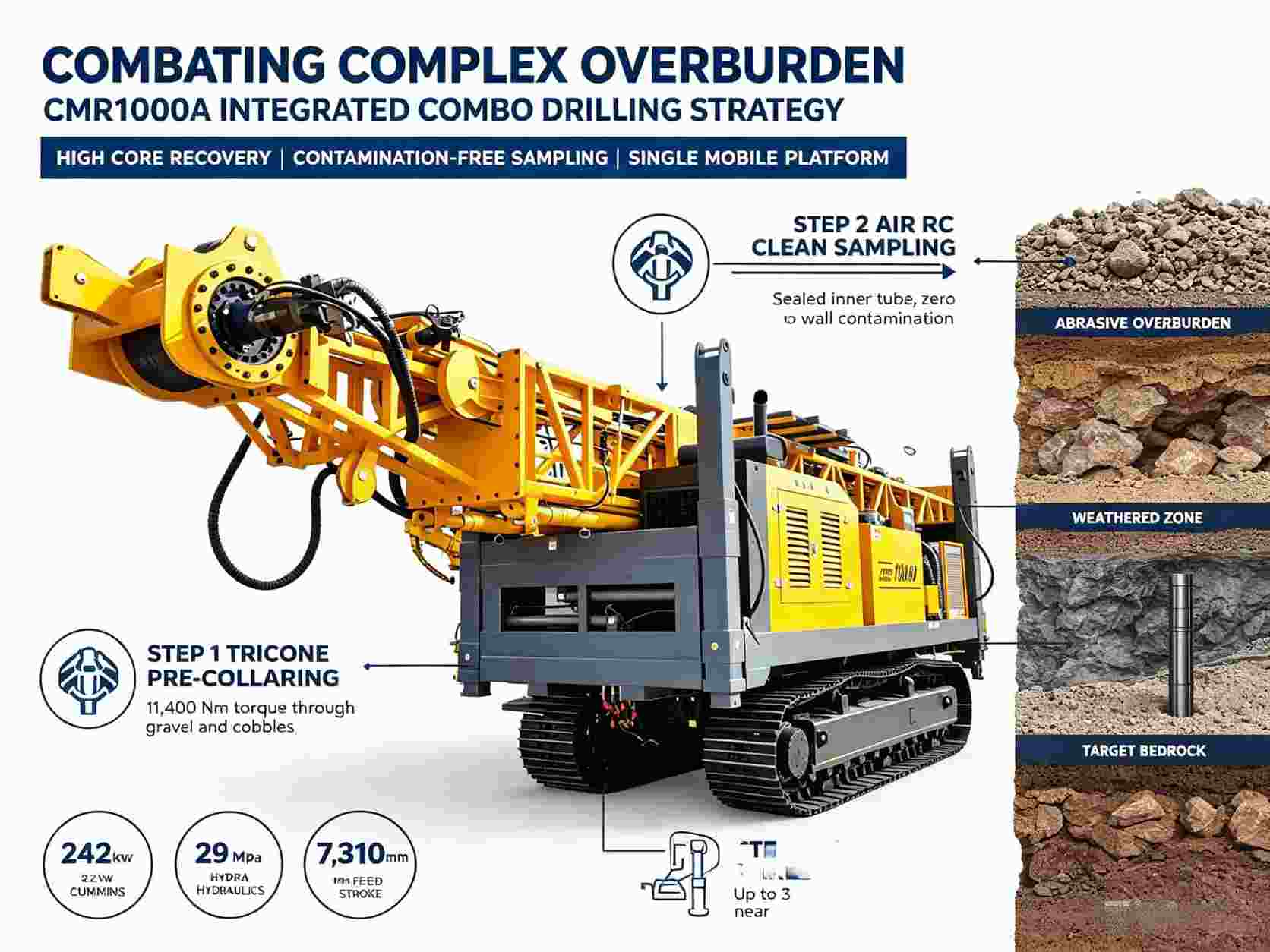

Step 1: Rapid Pre-Collaring Through Abrasive Overburden (Tricone & Air RC)
The first phase of the CMR1000A combo drilling strategy focuses on speed and borehole stabilization through the upper unstable formations. Instead of struggling with mud systems and delicate coring barrels, the rig utilizes its high-torque parameters to drill a stable pre-collar:- Tricone Drilling: Powered by a massive 242 kW Cummins engine and a robust 29 MPa hydraulic platform, the rig unleashes up to 11,400 Nm of rotary torque. This sheer mechanical force enables it to drive large-diameter tricone bits through tough gravel layers, boulders, and cobbles with ease.
- Air Reverse Circulation (RC) Sampling: For weathered zones and dry overburden, the driller switches to Air RC mode using 4-inch or 4.5-inch dual-wall rods. Backed by an aggressive 110 kN crowd force (downward feed force), the CMR1000A can rapidly pre-collar down to 320 to 400 meters deep, bypassing the unstable zones in a fraction of the time required by standard coring.
Step 2: Protecting Sample Purity (Contamination-Free RC Collection)
In modern mining exploration, sample integrity is everything. Traditional open-hole percussion drilling allows the cuttings to travel up the borehole wall, leading to severe sample contamination from the loose upper walls.The CMR1000A's integrated Air RC loop solves this risk completely. The high-pressure air stream travels down the outer annulus of the dual-wall pipe, powers the hammer at the face, and immediately forces the broken rock chips up the smooth inner tube directly to the surface cyclone.
Because the sample is entirely sealed inside the inner pipe, it never makes contact with the borehole wall. This zero-contamination loop guarantees the geochemists receive pristine, unadulterated chip samples, giving exploration companies accurate data right from the early geochemical mapping phase.
Step 3: Transitioning to Ultra-Deep Targets with Maximum Core Recovery
Once the stable pre-collar is set and the hard, mineralized target bedrock is reached, the CMR1000A transitions to its high-precision mode: Diamond Wireline Core Drilling.- High-Speed Rotational Precision: Diamond cutting requires high RPMs to shave rock cleanly rather than crushing it. The top-drive rotation head of the CMR1000A shifts gears to deliver up to 1,180 rpm, providing the perfect linear speed for industrial diamond matrices.
- Massive Deep-Hole Lifting Capacity: Pulling long, heavy core strings out of deep boreholes requires extreme hoisting power. The CMR1000A's primary winch generates up to 191 kN of raw lifting force, allowing the rig to pull deep strings effortlessly. It achieves certified diamond coring depth capabilities of 1,600 meters in H-size, 2,400 meters in N-size, and up to 3,000 meters in B-size.
- High Core Recovery Rates: By utilizing a rigid mast structure with a 7,320 mm feed stroke and a long 1,400 mm mast slide adjustment, the driller can maintain a steady, vibration-free weight-on-bit (WOB). This precise hydraulic pressure control prevents the rock from fracturing inside the inner tube, ensuring near 100% core recovery even when cutting through highly broken, fractured mineral veins.
Certified Engineering for Global Mining Standards
The true value of the CMR1000A lies in its versatility without compromise. It does not just perform three different drilling methods; it excels at all three on a single mobile platform. Fully backed by CE and ISO certifications, the CMR1000A meets the strict safety and environmental standards of international mining regulations.By allowing exploration teams to use Air RC for rapid, clean upper-hole pre-collaring and smoothly switch to ultra-deep diamond wireline coring for high-recovery target mapping, the CMR1000A effectively solves the core loss and high operating costs that have plagued complex drilling projects for decades.
