CORTECH CMD Series API 4F Certified 100T–180T Large Diameter Deep Well Drilling Rigs

Manufactured by Jinneng Holding Equipment Manufacturing Group | A Member of Jinneng Holding Group (Fortune Global 500 Enterprise)

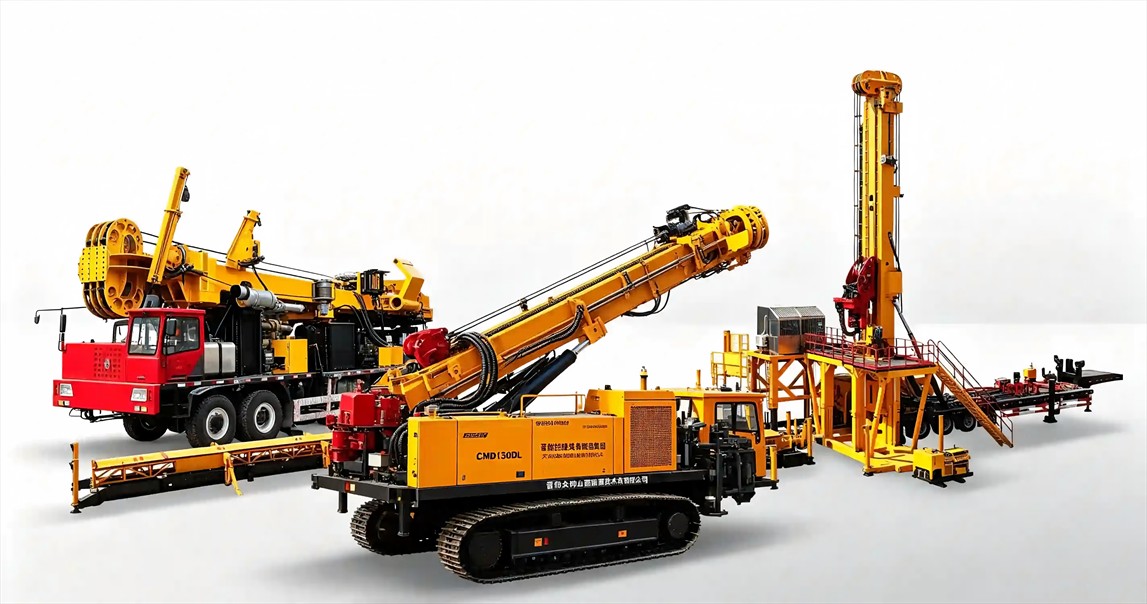

Product Overview

The CORTECH® CMD Series represents a world-class portfolio of ultra-heavy-duty multi-functional full hydraulic top-drive large diameter drilling rigs, masterfully engineered for high-consequence energy, geothermal, and industrial deep-well operations. Purpose-built to conquer heavy casing strings and complex crustal formations globally, this high-tier heavy land rig lineup is fully optimized for advanced multi-fluid drilling methodologies, including Air DTH Hammer Drilling, Mud Circulation Drilling, and Air-Lift Reverse Circulation (ALRC).

Spanning an authoritative hoisting pullback capacity from 100 Metric Tons to an immense 180 Metric Tons, the CMD Series completely redefines large-bore deep drilling metrics. Universally adapted for straight, directional, and horizontal multilateral branching wells, our rigs integrate elite industrial assets like API 4F certified drilling masts, BOP-ready elevated substructures, wireless remote walking systems, and automated iron roughnecks. The CMD series delivers the ultimate combination of precision weight-on-bit (WOB) balancing control, continuous structural torque delivery, and unmatched engineering safety guidelines for global energy conglomerates and national disaster response programs.

Core Advantages & Engineering Highlights

· API Spec 4F Certified Engineering Integrity: The heavy-duty structural steel masts, telescoping frames, and lifting structures across the full CMD lineup hold an official American Petroleum Institute (API) Monogram License (Certificate No. 4F-0504). Fully audited to comply with API Spec 4F and API Spec Q1 quality management frameworks, this ensures total legal and operational compliance on high-risk oil and gas sites worldwide.

· Massive Pullback & Dual-Torque Spindle Controls: Outfitted with multi-circuit high-pressure hydraulic loops providing continuous pullback forces from 100T up to 180T. Backed by top-drive heads generating up to 41,000 N·m of continuous breakdown torque, our rigs seamlessly run heavy large-diameter casings and thick-walled drill pipes at immense vertical horizons.

· BOP-Ready Elevated Substructure Design: Built with specialized operating floors and substructures establishing clear workspace heights from 2.08m up to a staggering 5.5m (including advanced Slingshot Hydraulic Lifting Frameworks). This safety-first geometry grants drilling engineers ample clearance to rapidly mount standard pressure-rated Blowout Preventers (BOP), heavy fluid diverters, and oilfield well control manifolds to mitigate gas-kick hazards.

· Heavy-Duty High-Pressure Fluid Manifolds: Features integrated onboard air/mud piping networks rated for 20.6 MPa to 35 MPa maximum continuous pressure resistance with nominal inner diameters up to 100 mm. Quick-coupling auxiliary ports permit instant, seamless attachment to external high-capacity air compressor banks, foam injection systems, or massive oilfield mud pumps.

· World-Class HSE & Standardized Manufacturing Compliance: Every single rig is fabricated within our state-of-the-art heavy industrial manufacturing base, operating under internationally audited system standards officially certified under ISO 9001:2015 (Quality), ISO 14001:2015 (Environmental), and ISO 45001:2018 (Occupational Health & Safety).

Strategic Industry Applications

· Unconventional Oil & Gas & CBM: Optimized for high-accuracy directional reaming and extended horizontal runs in low-pressure, fragile Coalbed Methane (CBM) gas field matrices.

· Deep Geothermal & Mega Water Wells: Purpose-built for boring large-bore holes up to 820 mm to tap deep industrial water matrices and sustainable geothermal hot-dry-rock energy reservoirs.

· Mine Ventilation & Rapid Crisis Rescue: Trusted globally for drilling high-diameter ventilation shafts and boring rapid, large-scale emergency escape passages during underground mine collapse crises.

Find Your Ideal Large-Bore Drilling Platform: CMD Series Selector

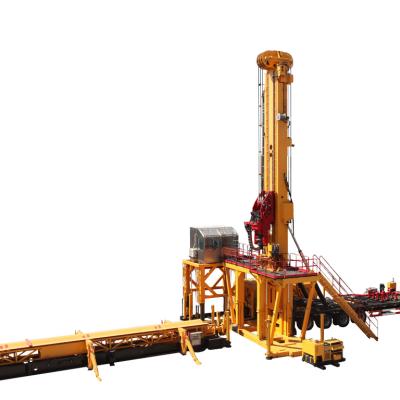

· CORTECH® CMD180 (Slingshot Modular Flagship): Elite 180-ton pullback modular land rig featuring a specialized hydraulic Slingshot Substructure Framework with a 5.5m BOP floor clearance. Driven by twin Chongqing Cummins engines in parallel (1,520 hp combined) and integrated with an automated Iron Roughneck (108 kNm torque) and Hydraulic Power Catwalk. Built for the deepest, highest-consequence corporate energy developments.

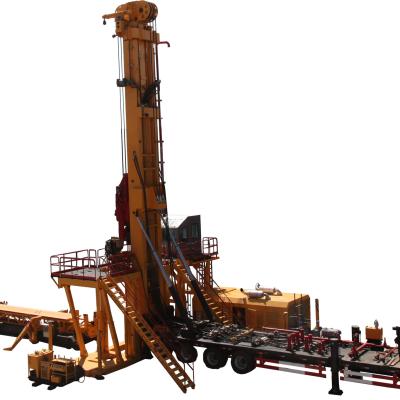

· CORTECH® CMD150 (Modular Field Redundancy Rig): Heavy-duty 150-ton pullback segmented block rig powered by parallel dual Dongfeng Cummins Z15 engines (560 hp × 2). Features quick interlocking pin-connected skids optimized for helicopter or over-land hauling, a 4.8m elevated floor, and full automated iron roughneck handling loops. Designed for remote, restricted wilderness alpine or jungle sites.

· CORTECH® CMD130 (Truck-Mounted Mobility Flagship): Powerful 130-ton pullback land rig mounted onto a heavy-duty 10×8 multi-axle specialty carrier chassis. Utilizing an independent 338 kW carrier engine and a weight-optimized design, it caps highway registration weight at a lean 54.5 tons for seamless legal public road transit. Driven by a 567 kW Chongqing Cummins engine on the upper drilling deck with a 35 MPa high-pressure fluid manifold.

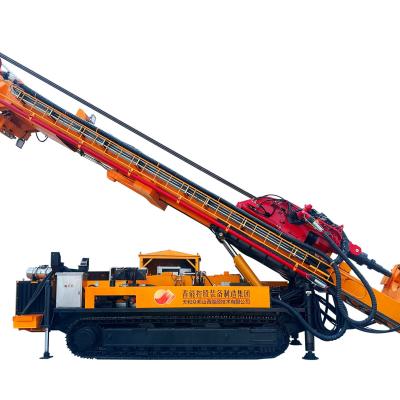

· CORTECH® CMD130L (Diesel Crawler Powerhouse): Robust 130-ton pullback land rig mounted on a rugged integrated steel track crawler chassis. Powered by a heavy 563 kW Dongfeng Cummins QSM15 turbocharged engine and a 28 MPa hydraulic circuit, it features a 35,000 N·m torque head, a 1.35m-2.2m height-adjustable substructure, and wireless remote walking controls for extreme off-road wilderness operations.

· CORTECH® CMD130DL (Zero-Emission Pure Electric Rig): Eco-friendly 130-ton pullback crawler rig powered by a premium 400 kW clean electric motor drive array. Generating near-zero localized emission vectors and drastically lowering operating fuel/noise footprints, it serves as the ultimate choice to clear strict international ESG audits and residential-adjacent zoning constraints.

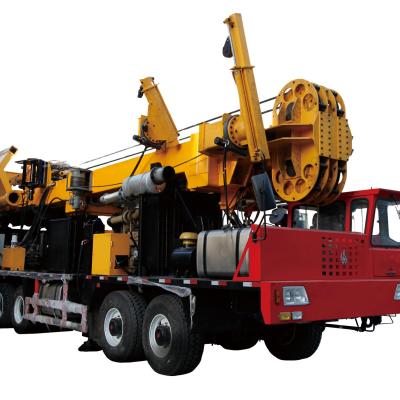

· CORTECH® CMD100 (Multi-Functional Deep Well Rig): Dedicated 55-ton gross weight, 100-ton hoisting capacity full hydraulic rig driven by a 559 kW Chongqing Cummins KTA19 engine. Features an 810 mm centralizer opening, a 2.08m clear substructure height for standard BOP installation, and a dual-torque spindle (up to 27,500 N·m). Optimized for multi-method air/mud/foam industrial drilling.

FAQ

Q1: What unique logistics and terrain benefits do the diverse chassis forms (Truck, Track, and Modular) provide in the CMD Series?

A1: To eliminate mobilization friction across vastly different international projects, the CMD Series offers three distinct mobility architectures. The Truck-Mounted CMD130 (10×8 chassis) optimizes transit down to a 54.5t legal weight, enabling independent highway driving between fields without lowboys. The Track-Mounted CMD130L/DL utilizes rugged steel crawlers with wireless remotes to independently climb 30° wilderness slopes. For inaccessible environments without roads, the Modular CMD150/180 allows the entire 60-ton framework to split into individual pin-connected skids for standard overland trucking or helicopter hoisting.

Q2: How do the BOP-ready elevated substructures and slingshot mechanisms ensure gas field compliance?

A2: Deep water well, geothermal, and CBM gas-field operations carry persistent risks of gas kicks and geological pressure surges. CMD rigs feature elevated operating tables from 2.08m up to a monumental 5.5m paired with wide centralizer openings. In our flagship CMD180, a specialized Slingshot Substructure allows the entire drilling floor and top drive to be rigged up safely at near-ground level, before being raised smoothly into position via heavy hydraulic cylinders. This provides full overhead space to rapidly fit high-pressure Blowout Preventers (BOP) and diverters to enforce strict oilfield well control compliance.

Q3: What operational benefits does the dual parallel engine setup provide on flagships like the CMD150 and CMD180?

A3: Reaching extended depths with immense reaming torques requires rigid, fail-safe power delivery. Our modular flagships integrate twin Cummins diesel engines (up to 1,520 hp combined) operating in a parallel network. This dual-engine setup provides built-in mechanical redundancy: if one engine requires emergency maintenance mid-operation, the secondary power source independently maintains vital hydraulic circulation pressures to prevent downhole tools from jamming or sticking, saving contractors from catastrophic string losses.
