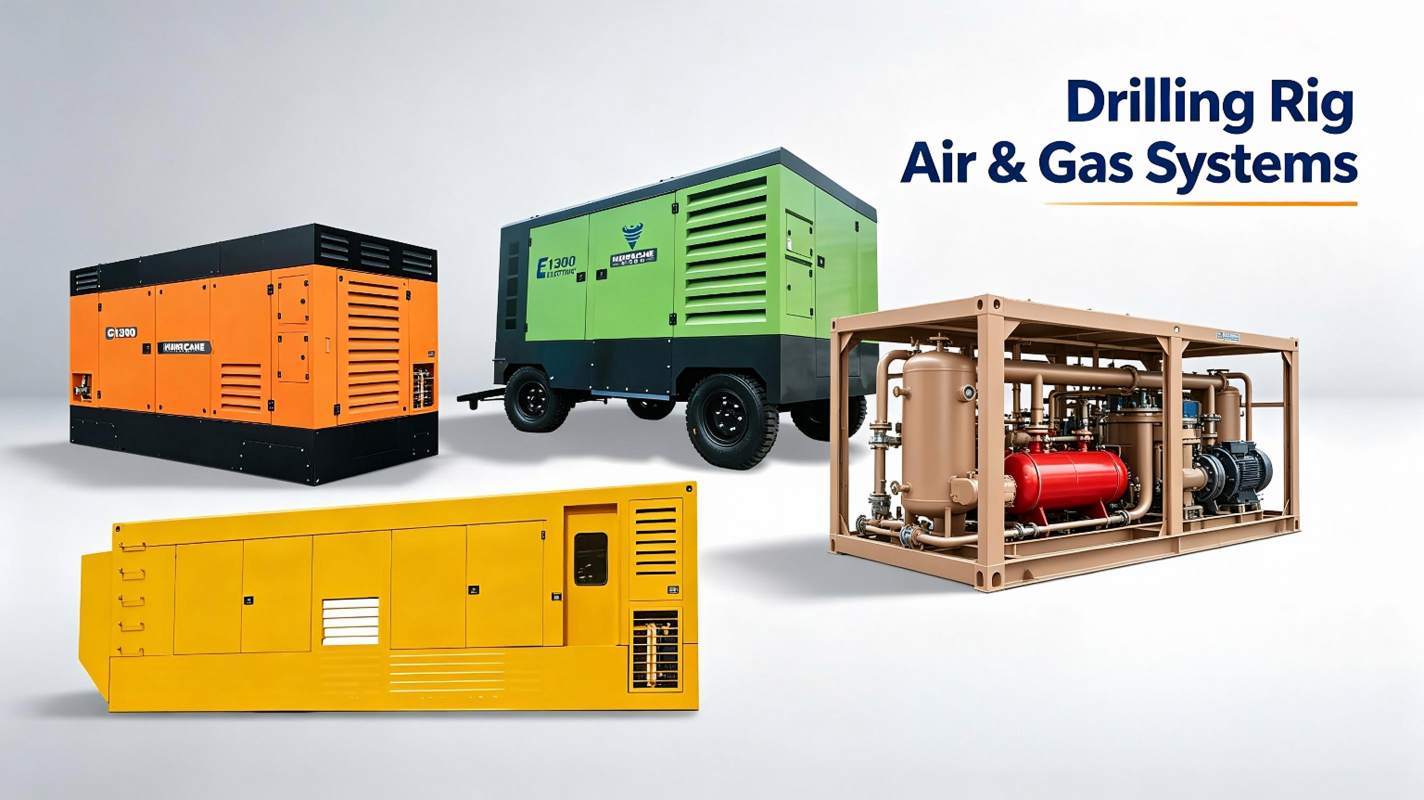

Compressed Air & Gas Systems for Core & Large Diameter Drilling Rigs
Manufactured under ISO 9001/14001/45001 Systems by Jinneng Holding Equipment Manufacturing Group | A Member of Jinneng Holding Group (Fortune Global 500 Enterprise)
Fortune Global 500 & ISO Certified Manufacturing Trust:
Developed in a state-of-the-art manufacturing hub fully certified under ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (HSE) international management frameworks. Backed by full corporate capitalization of Jinneng Holding Group, our official global trade channel provides absolute technical transparency, OEM warranty guarantees, and long-term overseas spare parts supply chain support for all drilling air and nitrogen system products
Powering Deep Earth Exploration
Our Compressed Air & Gas Systems are specifically designed to meet the rigorous demands of core drilling (where sample integrity is critical) and large-diameter drilling (where high volume and pressure are essential). Backed by years of field experience, we provide a comprehensive suite of solutions including electric and diesel air compressors, high-pressure boosters, and on-site nitrogen generation systems.
Our Drilling Air & Gas Solutions
Select the system that matches your rig and geological requirements.E-Series Electric Air Compressors
Ideal for low-noise environments and stable power sites.Designed for urban drilling or enclosed spaces where emissions are restricted. Features advanced VFD technology for precise pressure control and energy efficiency.
•Pressure Range: Up to 35 bar
•Flow Rate: 25-36 m³/min
[View E-Series Specifications →]
C-Series Diesel Air Compressors
Built for rugged mobility and remote operations.Powered by world-renowned engines (Cummins & Volvo), these units deliver unmatched performance in harsh climates and difficult terrains.
•Pressure Range: Up to 40 bar
•Flow Rate: 25-48.5 m³/min
[View C-Series Specifications →]
V-Series High Pressure Air Boosters
The solution for deep-hole and extreme pressure drilling.Essential when standard compressor pressure is insufficient. Our horizontal opposed design ensures low vibration and high stability at extreme pressures.
•Pressure Range: 200-350 bar
•Flow Rate: 40-120 m³/min
[View V-Series Specifications →]
N-Series Nitrogen Generators
Enhancing safety through Underbalanced Drilling (UBD).On-site nitrogen generation prevents formation damage and enhances penetration rates.
•Purity: 95% - 99.9%
•Flow Rate: Up to 1200 Nm³/h
[View N-Series Specifications →]
Engineered for the Field
Our products are not just machines; they are the result of extensive field testing and engineering refinement.•Robust Construction: Utilizing IP55 motors and F-class insulation, our units withstand dust, moisture, and extreme temperatures.
•Fuel & Energy Efficiency: Whether powered by diesel or electricity, our systems are optimized for low specific energy consumption.
•Modular & Mobile Design: Featuring skid-mounted and trailer-mounted options, our systems are easy to transport and deploy on complex job sites.
Frequently Asked Questions (FAQ)
What is the difference between air drilling and nitrogen drilling?
Air drilling uses compressed atmospheric air, which is cost-effective but contains oxygen that can cause formation oxidation or fires in oil/gas zones. Nitrogen drilling (using our N-Series) creates an inert environment, preventing formation damage and enhancing safety in underbalanced drilling (UBD).When do I need a High-Pressure Booster (V-Series)?
You need a V-Series booster when your primary compressor cannot reach the required pressure for deep-hole cleaning or DTH hammering. Our boosters take existing airflow and amplify it to extreme pressures ranging from 200 to 350 bar.Can I use the E-Series Electric Compressor on a remote site?
The E-Series is designed for sites with stable grid power or large generators. If you are in a remote location without reliable electricity, we recommend the C-Series Diesel Compressors, which offer self-contained mobility and rugged performance.Ready to Optimize Your Drilling Operation?
Contact our engineering team today to discuss the right air and gas solution for your specific drilling rig. We provide custom configurations to match your project requirements.-

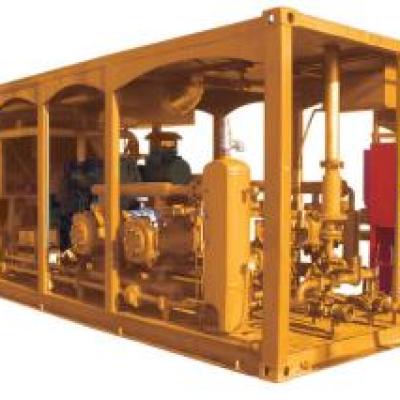

![V-Series High-Pressure Booster Compressors]()
-

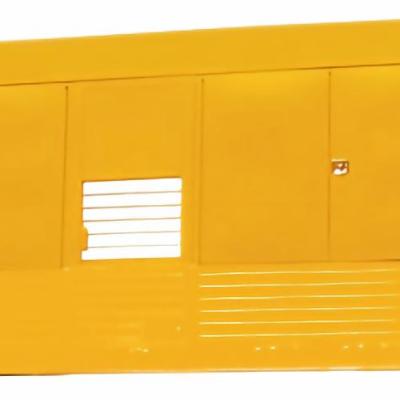

![N Series Mobile Nitrogen Generator]()
Our N Series skid-mounted nitrogen generators deliver reliable on-site nitrogen gas for full-hydraulic core drilling, large diameter drilling and multi-function drilling rigs. Adjustable nitrogen purity from 95% up to 99.90%, flow rates from 42–1200 Nm³/h, 2–35 MPa output pressure. View technical specs & FAQs.More -

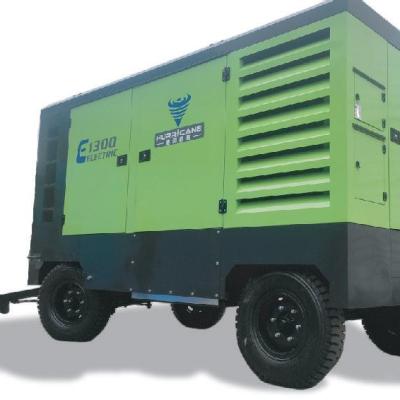

![E-Series VFD Electric Air Compressor for Drilling]()
Discover the E-Series VFD electric air compressor. 75dB low noise, IP55 rated, & energy-efficient drilling solutions. View specs for E1070-E1300H.More -

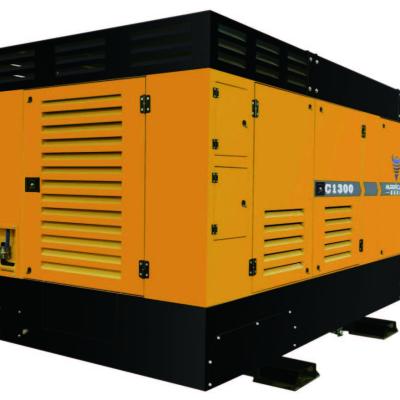

![C-Series Diesel Air Compressors for Drilling]()
Power your operations with the C-Series Diesel Air Compressors. Featuring Cummins/Volvo engines, 15-40 bar pressure, and specialized High-Altitude/Low-Temp packages. Ideal for core & large-diameter drilling rigs.More
