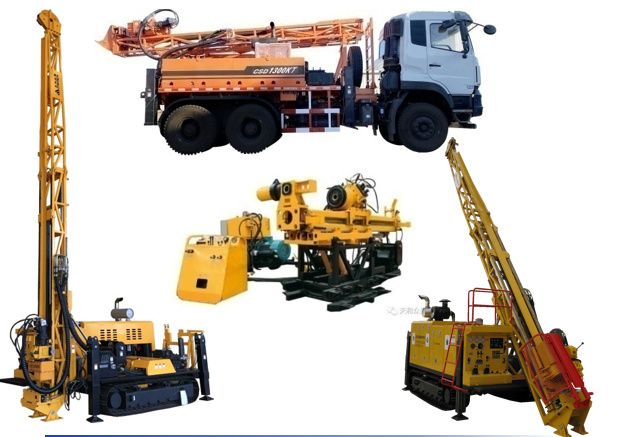

CORTECH® CE Certified Full Hydraulic Top-Drive Surface Core Drilling Rigs (500m - 3000m)

Manufactured under ISO 9001/14001/45001 Systems by Jinneng Holding Equipment Manufacturing Group | A Member of Jinneng Holding Group (Fortune Global 500 Enterprise)

Product Overview

Core Advantages & Engineering Highlights

• Precision Top-Drive Hydraulic Infrastructure: Driven by high-pressure 22 MPa to 28 MPa hydraulic circuit loops paired with industry-proven Cummins and Kubota turbocharged diesel engines (24.5 kW to 242 kW). Heavy-duty air-cooled radiator arrays guarantee continuous operation without thermal degradation or torque drops in extreme ambient site temperatures.

• Elite Diamond Wireline Optimization: Universally compatible with standard B/BQ, N/NQ, H/HQ, and P/PQ size wireline drill strings. High-capacity independent wireline winches supply rapid bare-drum lifting speeds up to 120 m/min with steel rope capacities up to 2,500 meters to slash auxiliary tripping non-drilling cycle times.

• Innovative Downhole Load Management: Our deep-hole flagships reject volatile push-pull feed control. By integrating advanced lateral side-shifting top drives or chuck-type power heads for unobstructed rod handling, telescopic mast architectures (up to 13.7m), and specialized balance-principle weight control systems, operators neutralize deadweight string load vectors to protect diamond bit crowns.

• All-Terrain Mobility & High-Adaptability Chassis: Heavy-duty crawler models feature rugged steel track chassis supporting up to 30° gradeability and outward-extendable hydraulic outriggers to widen the platform footprint and dampen harmonic rotation vibrations. Remote exploration lines utilize ultra-portable split configurations to bypass road access limits.

• Fortune Global 500 & ISO Certified Manufacturing Trust: Developed in a state-of-the-art manufacturing hub fully certified under ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (HSE) international management frameworks. Backed by full corporate capitalization of Jinneng Holding Group, our official global trade channel provides absolute technical transparency, OEM warranty guarantees, and long-term overseas spare parts supply chain support.

Applications by Industry

• Mineral Exploration: Tailored for deep-seated gold, copper, iron, potash, and lithium deposit delineation requiring high-accuracy HQ/NQ/BQ diamond wireline core extraction.
• Geotechnical & Infrastructure Surveys: Trusted for precise borehole sampling in large-scale dam safety stabilization, railway tunnel alignment testing, and deep structural foundation analysis.
• Remote Wilderness & Roadless Mobilization: Optimized for rapid, cost-effective setup in restricted alpine terrains, dense jungles, or high-temperature deserts utilizing high-mobility crawlers or man-portable modular split configurations (like CSD500CE) that eliminate site preparation costs.

Find Your Ideal Exploration Platform: Core Rig Selector

• CORTECH® CSD3000 (Ultra-Deep Flagship): Rated for 3,000m (B Size) / 2,300m (N Size) / 1,600m (H Size). Features balance-principle WOB control, an extendable telescopic mast, and an 8,170 Nm top-drive head powered by a 242 kW Cummins engine. Ideal for national strategic deep mineral matrix mapping.
• CORTECH® CSD1800AX (Deep-Hole Side-Shift Master): Rated for 2,000m (B Size) / 1,700m (N Size) / 1,200m (H Size). Driven by a 194 kW Cummins engine with a 13m mast. Features a specialized lateral side-shifting top-drive head for full overhead winch clearance to maximize single-shift drilling productivity.
• CORTECH® CSD1800X (Deep-Hole Heavy-Duty Flagship): Rated for 2,000m (B Size) / 1,700m (N Size) / 1,200m (H Size). Powered by a 194 kW Cummins diesel engine and a 28 MPa hydraulic loop supplying 5,500 Nm torque. Built with a rigid 13m high-capacity mast for stable ultra-deep long-string drilling strings.
• CORTECH® CSD1300G (Top-Drive Mid-Deep): Rated for 1,300m (B Size) / 1,000m (N Size) / 700m (H Size). Features a 10m high-strength mast, a φ117 mm spindle thru-hole diameter, and an integrated multi-point gauge panel. Optimized for continuous diamond wireline coring.
• CORTECH® CSD1300L (Lightweight Mobile Crawler): Rated for 1,300m (B Size) / 1,000m (N Size) / 700m (H Size). Features an upgraded 154 kW Cummins engine optimized down to a lean 8.5-ton total gross weight on an agile crawler chassis for rapid wilderness over-land deployment.
• CORTECH® CSD500L (Compact Exploratory): Rated for 650m (B Size) / 500m (N Size) / 300m (H Size). A nimble 5.7-ton crawler rig featuring an 8.6m mast supporting 6m single rod pulls. Comes standard with an onboard mud pump and fluid mixer for tight, confined urban or valley operations.
• CORTECH® CSD500CE (Man-Portable Modular Split): Rated for 600m (BQ Size) / 400m (NQ Size) / 200m (HQ Size). An ultra-lightweight modular split rig with a maximum single component weight under 200 kg. Powered by a flexible Kubota engine cluster (24.5 kW x 4) and compatible with standard Q-series 3m tools. Fully optimized for remote mountains, dense jungles, and areas with zero road access.

Frequently Asked Questions (FAQ)

Q1: What makes the CORTECH® CSD series superior in preventing downhole drill string failures during deep-hole operations?

Q2: How do CORTECH® core drill rigs accelerate tripping speeds and core extraction rates?

Q3: How do the different mobility configurations in the CSD series adapt to challenging wilderness terrains?
