CORTECH® CE-Certified CMR1000A Multi-Functional Combination Drilling Rig
Manufactured under ISO 9001/14001/45001 Systems by Jinneng Holding Equipment Manufacturing Group | A Member of Jinneng Holding Group (Fortune Global 500 Enterprise)

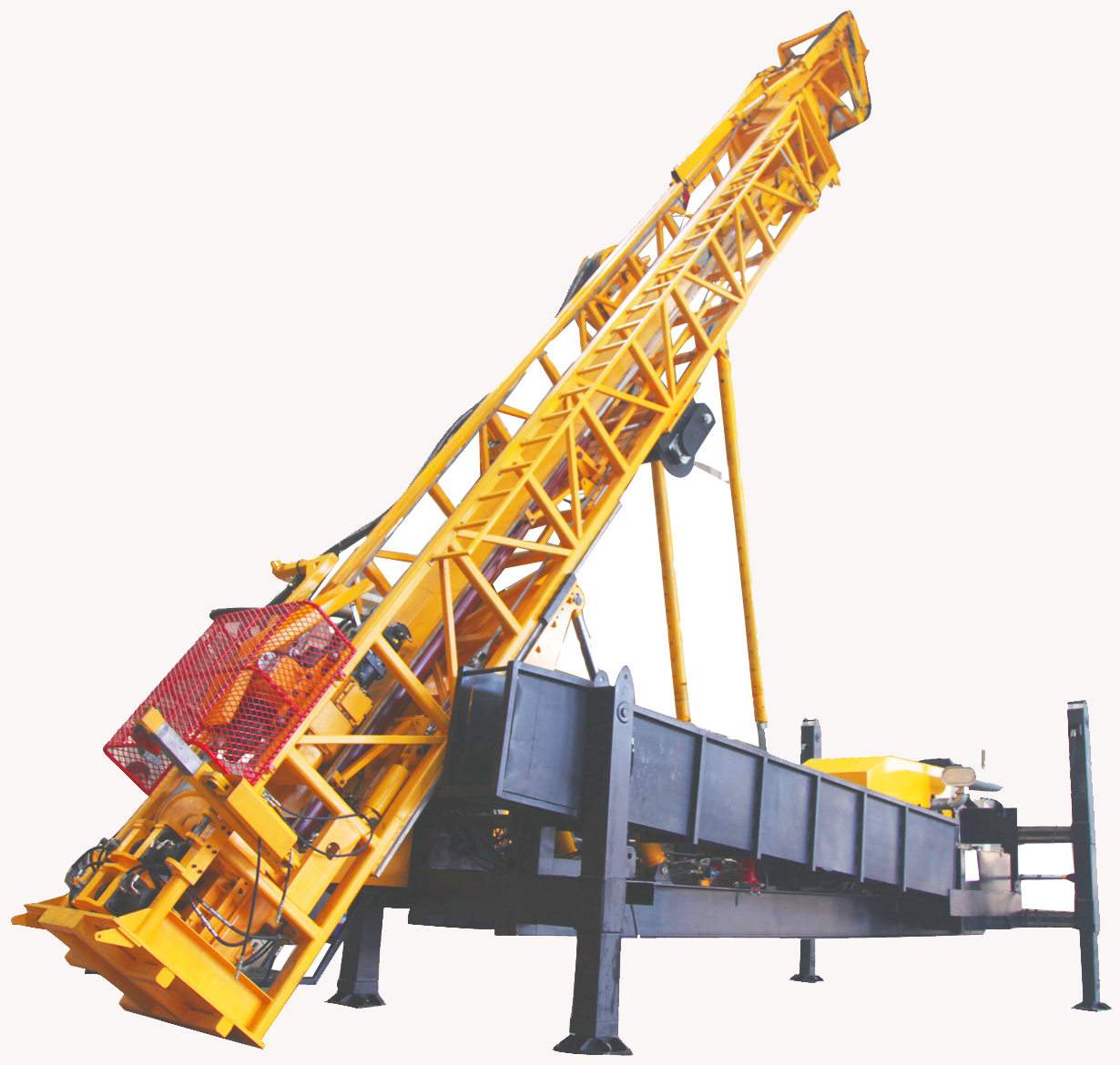

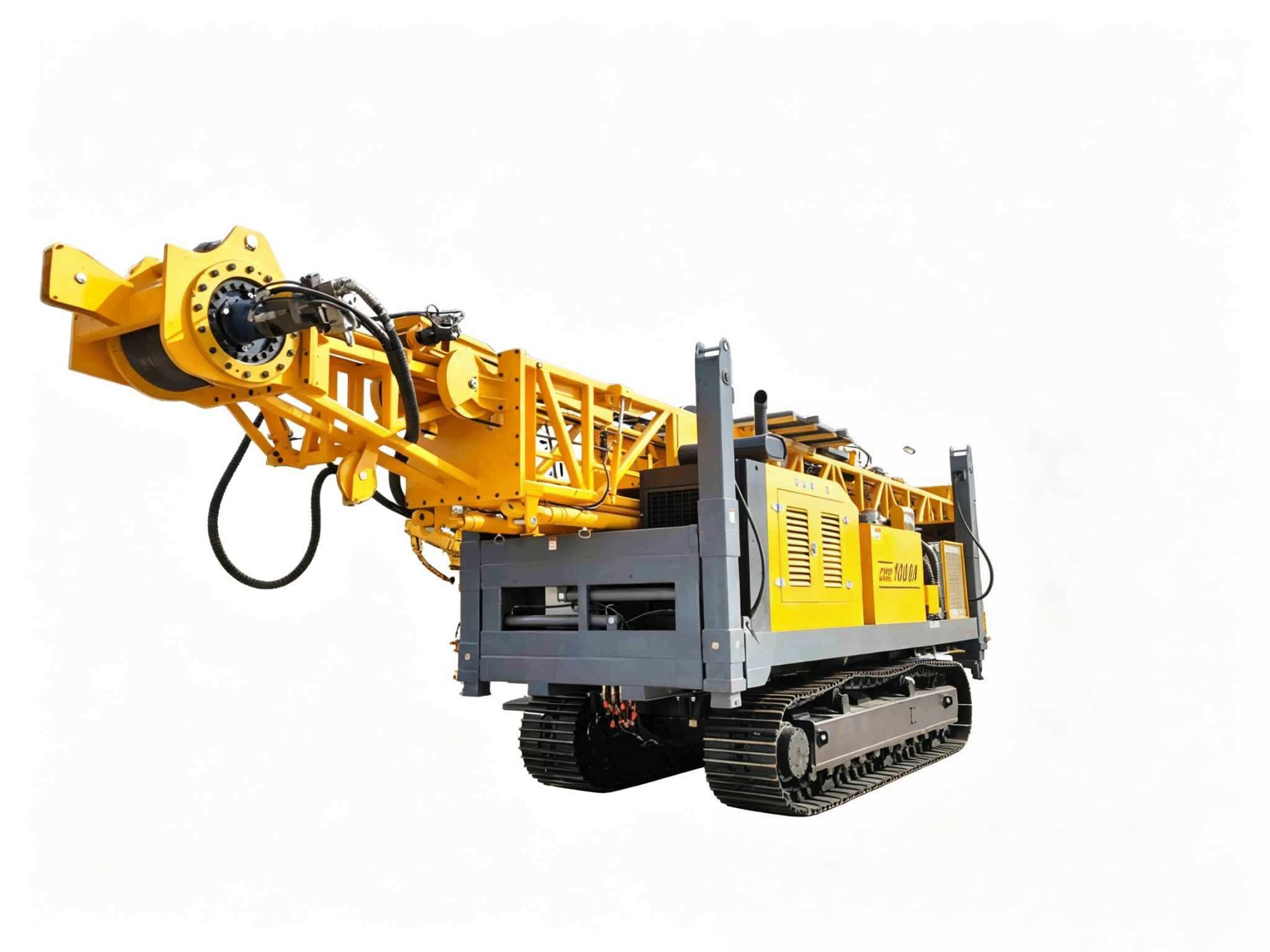

Overview of CMR1000A Drilling Rig
The CMR1000A Multi-Functional Drilling Rig is a premier, heavy-duty engineering solution designed for superior performance across diverse and challenging geological landscapes. Engineered to adapt seamlessly to unpredictable strata, this top drive hydraulic core drilling rig integrates multiple drilling methods into a singular, highly efficient platform. By combining tricone bit drilling, air reverse circulation (RC) sampling drilling, and diamond wireline core drilling, the CMR1000A delivers unmatched multi-purpose versatility. It represents a quantum leap in reducing field labor, simplifying multi-process operations, and significantly driving down overall drilling costs per meter.
Key Drilling Capabilities
Designed as a robust combination drilling rig, the CMR1000A stands out for its exceptional capability to handle multiple drilling crafts on a single site without requiring a swap of equipment.
Diamond Wireline Core Drilling: Engineered for ultra-deep exploration, utilizing premium diamond bits and wireline systems to extract intact, continuous geological core samples up to 3,000 meters deep.
Air Reverse Circulation (RC) Sampling: Tailored for rapid, high-accuracy mining exploration and chip sampling, delivering immaculate geological data with zero cutting contamination.
Tricone Bit Drilling: Optimized for high-efficiency rotary drilling through hard, abrasive rock formations, ensuring excellent hole quality, stability, and straightness.
Certified CE & ISO International Safety Compliance：The CORTECH® CSD series surface core drilling rigs are officially certified with the CE Mark, fully complying with European Union mechanical safety, high-pressure hydraulic containment, and rigorous environmental emission directives. Furthermore, the state-of-the-art manufacturing infrastructure operates under an integrated management framework verified by ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 standards, guaranteeing that every diamond wireline platform is fabricated to the highest reliability benchmarks demanded by international mining consortiums.
Technical Specifications
| Category / Parameter Item | Technical Specifications |
|---|---|
| DRILLING CAPACITY (Reference) | |
| Diamond Wireline Coring — B Size (55.5 mm) | Max. Depth: 3,000 m |
| Diamond Wireline Coring — N Size (71.0 mm) | Max. Depth: 2,400 m |
| Diamond Wireline Coring — H Size (89.0 mm) | Max. Depth: 1,600 m |
| Diamond Wireline Coring — P Size (114.0 mm) | Max. Depth: 1,100 m |
| Reverse Circulation (RC) Drilling — 4" Rod | Max. Depth: 400 m |
| Reverse Circulation (RC) Drilling — 4.5" Rod | Max. Depth: 320 m |
| HYDRAULIC SYSTEM | |
| Hydraulic System Rated Pressure | 29 MPa |
| Cooling Method | Air Cooling |
| POWER UNIT & ENGINE | |
| Engine Model | Cummins L8.9CS4 330C |
| Aspiration Type | Turbocharged |
| Rated Engine Power / Speed | 242 kW @ 2,200 rpm |
| ROTATION & FEED SYSTEM (Power Head) | |
| Drive Mechanism Type | Top Drive Hydraulic |
| Max. Rotation Torque | 11,400 Nm |
| Max. Rotation Speed | 1,180 rpm |
| Feed Head Stroke | 7,320 mm |
| Max. Lifting / Feed Force | 250 kN / 110 kN |
| WINCH SYSTEMS (Dual Speed Control) | |
| Main Winch Lifting Capacity & Speed | 191 kN @ 30 m/min (Low Speed) | 90 kN @ 54 m/min (High Speed) |
| Main Winch Wire Rope Dia. / Capacity | 26 mm / 25 m |
| Wireline Winch Lifting Capacity & Speed | 19 kN @ 107 m/min (Low Speed) | 5 kN @ 410 m/min (High Speed) |
| Wireline Winch Wire Rope Dia. / Capacity | 6.6 mm / 2,500 m |
| MAST, HOLDER & BREAKOUT SYSTEM | |
| Total Mast Height | 13.4 m |
| Drilling Operating Angle | 45° - 90° |
| Mast Slide Stroke | 1,400 mm |
| Foot Clamp Holder Compatibility | B, N, H, P, PW (Drill Rods) |
| Hydraulic Breakout Shackle Compatibility | 3.5", 4", 4.5" (Drill Rods) |
| PHYSICAL DIMENSIONS & WEIGHT | |
| Transport Dimensions (L x W x H) | 13,400 × 2,500 × 3,230 mm |
| Total Rig Gross Weight | 24,500 kg (24.5 tons) |
Applications & Advantages in Complex Formations
The CMR1000A multipurpose core drilling rig is purpose-built to solve the toughest geo-technical construction and exploration dilemmas. Whether encountering fragmented strata, cobble layers, or water-sensitive formations, this rig delivers distinct field advantages:
Overcoming Complex Strata Challenges: The combined drilling craft allows operators to shift between fluids, muds, or air-driven methods instantaneously, eliminating frequent borehole collapse, tool-sticking, and water loss.
Superior Rock Sample Integrity: By utilizing isolated air RC channels, geological chips bypass the borehole wall completely, maintaining authentic mineralogy with zero rock sample contamination.
Maximum Return on Investment (ROI): High penetration rates, reduced auxiliary time, lower tool wear, and durable build quality drastically minimize operational downtime, keeping your project ahead of schedule.
FAQ
Q1: What distinct advantages does the CMR1000A offer for complex geological formations?
A1: The CMR1000A is uniquely engineered with a combination drilling technology. It integrates tricone bit drilling, air reverse circulation (RC) sampling, and diamond wireline core drilling into a single system. This versatility allows operators to easily switch techniques to adapt to unexpected or highly complex strata, effectively solving borehole collapse and tool-sticking issues while maintaining excellent hole quality.
Q2: What is the maximum drilling depth capability of the CMR1000A rig?
A2: The maximum depth depends on the drilling method and rod diameter you choose:
Diamond Core Drilling: Up to 3,000 meters with B size rods, 2,400 meters with N size, 1,600 meters with H size, and 1,100 meters with P size.
Air Reverse Circulation (RC) Drilling: Up to 400 meters with 4" rods and 320 meters with 4.5" rods.
Q3: How does the CMR1000A ensure uncontaminated core and rock samples?
A3: By utilizing advanced air reverse circulation (RC) sampling drilling technology, the rock chips and cutting samples are lifted directly through the inner dual-wall drill pipe to the surface. This method completely isolates the samples from the borehole wall, eliminating cutting cross-contamination and delivering highly accurate geological rock samples for assaying.
Q4: Is the CMR1000A drilling rig easy to transport and relocate between sites?
A4: Yes. Despite its heavy-duty performance, the CMR1000A features an optimized structural layout. Its transport dimensions are 13,400 x 2,500 x 3,230 mm with a total gross weight of 24.5 tons, making it standard-compliant for regular heavy-duty low-boy trailer transportation. The 1,400 mm mast slide stroke also adds flexibility during positioning and setup on rugged terrains.
Q5: What power plant drives the CMR1000A hydraulic system?
A5: The rig is powered by a high-performance Cummins L8.9CS4 330C Turbocharged Engine, delivering a rated power of 242 kW at 2,200 rpm. Combined with a 29 MPa heavy-duty hydraulic system and an efficient air-cooling module, it guarantees stable, uninterrupted top-drive torque output (up to 11,400 Nm) even in extreme working environments.
