Coal Mine Ventilation Borehole Drilling: A Standard CMD100 Process in 25 Days

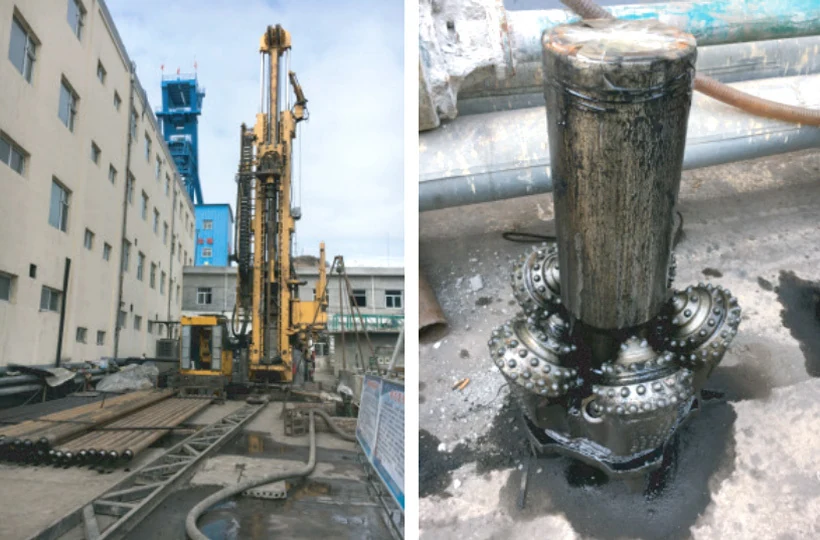

CORTECH CMD100 truck rig performing coal mine ventilation borehole drilling on site
Executive Summary
A recurring question from coal-mine operators is how to drill a coal mine ventilation borehole quickly and reliably. A field-standard process delivered by the CORTECH® CMD100 full-hydraulic truck-mounted rig answers it in repeatable numbers: drill a Φ216 mm pilot borehole to 254 m in 2 days, then ream it in two steps — first to Φ470 mm, then to a finished Φ710 mm — at a penetration rate of 3–5 m/h. The complete ventilation borehole, pilot plus both reaming passes, was finished in 25 days. This article sets out the standard sequence, the efficiency data and the rig capability behind it, so engineers can estimate their own ventilation-hole projects.
Why Ventilation Boreholes, and the Typical Challenge
Coal mines rely on large-diameter surface-to-underground boreholes to boost intake or exhaust airflow and control gas. Compared with a conventional shaft, a drilled borehole is faster and lower-cost, but it still has to:
- Reach the planned underground level at depth (here around 250 m).
- Hold a stable, gauge wall so it does not collapse or leak air over years of service.
- Be enlarged from a small pilot to a large finished diameter without losing schedule.
The Standard Process (CMD100)
The proven method runs in three clear steps:
- Pilot borehole: a Φ216 mm bit drills the mouth and a straight pilot down to 254 m — completed in 2 days. The pilot confirms geology and alignment before any large-diameter reaming begins.
- First reaming: the bore is enlarged to Φ470 mm, removing the bulk of the rock while the pilot keeps the path true.
- Second reaming: the bore is enlarged again to the finished Φ710 mm diameter, the size required for the target airflow.
Throughout both reaming passes, penetration ran at 3–5 m/h, and the full scope — pilot plus two reamings — took 25 days.
Key Results
| Metric | Value |
|---|---|
| Pilot borehole | Φ216 mm, 254 m |
| Pilot duration | 2 days |
| First reaming | Φ470 mm |
| Second (finished) reaming | Φ710 mm |
| Reaming penetration rate | 3–5 m/h |
| Total project duration | 25 days |
| Rig | CORTECH CMD100 truck-mounted |
For the full technical specifications of the CORTECH® CMD100, see the CMD100 product page.
Customer Value & ROI
- Fast air upgrade: a 25-day build means the mine gains additional ventilation quickly, directly supporting gas control and production continuity.
- Predictable schedule: fixed pilot depth, fixed reaming steps and a known 3–5 m/h rate let planners quote the borehole as a near-turnaround item rather than an open-ended risk.
- Stable finished wall: reaming from a verified pilot protects the borehole's long-term airtight service, avoiding later collapse or leakage.
- Mobile, self-contained: the truck-mounted rig mobilizes and sets up with its own six outriggers, minimizing site preparation between boreholes.
FAQ
How is a coal mine ventilation borehole drilled?
Standard practice is to drill a small pilot first (Φ216 mm to the target depth), then ream in steps to the required finished diameter — here first Φ470 mm, then Φ710 mm. The pilot confirms alignment and geology before the larger reaming passes.
What diameter should a coal mine ventilation hole be?
It is sized to the required airflow. In this process the finished borehole was Φ710 mm, reached by reaming a Φ216 mm pilot through a Φ470 mm intermediate pass.
How long does it take to drill a 250 m ventilation borehole?
The 254 m pilot was drilled in 2 days, and the complete borehole — pilot plus two reaming passes to Φ710 mm — was finished in 25 days total.
What is the reaming speed for a ventilation borehole?
During the Φ470 mm and Φ710 mm reaming passes, the CMD100 averaged 3–5 m/h, which — combined with the short 2-day pilot — is what delivers the 25-day total.
