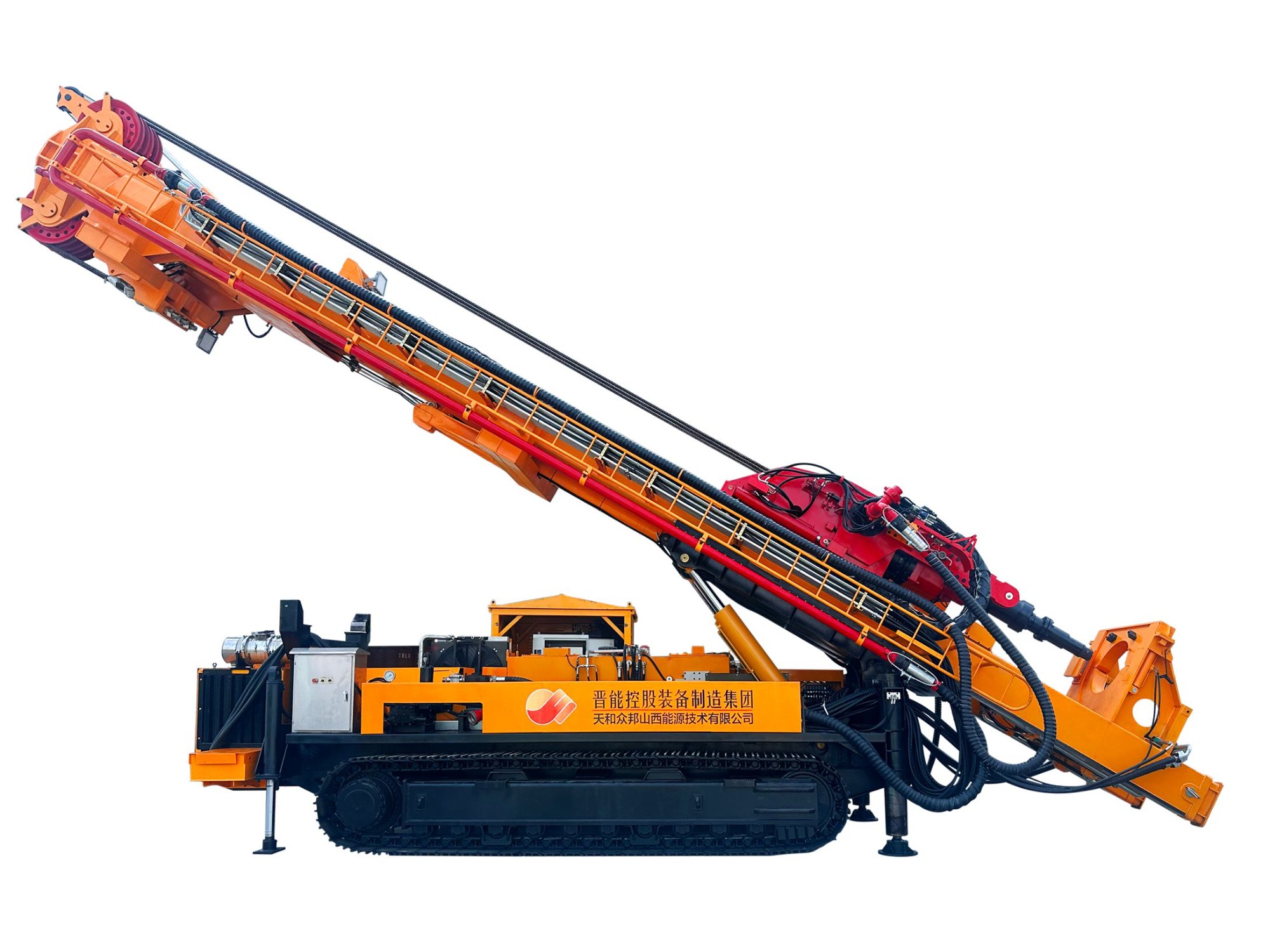

CORTECH® CMD130L Multi-Functional Large Diameter Deep Well Drilling Rig
Manufactured by Jinneng Holding Equipment Manufacturing Group | A Member of Jinneng Holding Group (Fortune Global 500 Enterprise)
Product Overview
The CORTECH® CMD130L is an ultra-heavy-duty, multi-functional full hydraulic top-drive drilling platform, masterfully engineered for high-consequence, large-diameter operations. Purpose-built to navigate the most grueling field conditions and deliver peerless cost-efficiency, this 60-ton industrial asset is the premier global choice for Oil/Gas & Coalbed Methane (CBM) extraction (including straight, directional, and horizontal multilateral branching wells), large-diameter mine ventilation shaft boring, deep geothermal energy tapping, and emergency crisis mine rescue programs.Featuring a monumental hoisting pullback capacity of 130 Metric Tons, the CMD130L is fully optimized for diverse and rigorous oilfield methodologies, supporting Air Positive/Reverse Circulation, Mud Positive/Reverse Circulation, and Air-Lift Reverse Circulation (ALRC) drilling techniques. Driven by a high-power 563 kW Dongfeng Cummins engine and backed by an official API 4F oilfield compliance certification, this heavyweight rig delivers unprecedented operational torque, site safety compliance, and robust reliability for global energy conglomerates and national disaster response frameworks.
Core Engineering Highlights & Commercial ROI
-
Colossal 130-Ton Pullback & Advanced Feed Dynamics: Outfitted with an authoritative multi-circuit full hydraulic loop offering a 130T hoisting capacity and 26T pulldown force. This structural muscle allows safe handling of ultra-heavy, large-diameter extended casing strings and deep long-string drill tools with absolute mechanical safety.
-
Ferocious 563 kW Cummins Power Matrix: Powered by an immense, heavy-duty Dongfeng Cummins QSM15 77C engine. Delivering enormous continuous output and massive torque backed by a premium electro-hydraulic control system, it ensures uninterrupted penetration through the hardest deep-crust formations.
-
Height-Adjustable Substructure & BOP Compatibility: Features a specialized centralizer worktable height adjustment range from 1.35 meters up to 2.2 meters, paired with an expansive 820 mm maximum drilling diameter. This versatile structural footprint allows crews to adjust clearance rapidly for the safe installation of standard oilfield Blowout Preventers (BOP) and fluid diverters.
-
Wireless Remote Tramming & High Stability: Mounted on a rugged steel crawler chassis with an 18° climbing gradeability, controlled via an intuitive Wireless Remote Walk-Control System to ensure flawless, safe site-to-site tracking. Stability during intense 35,000 N·m torque rotations is fully secured by heavy-duty outrigger stabilizers.
-
Premium Drilling Ergonomics (Elevated Cabin Optional): Engineered with an advanced electric/hydraulic interface, supporting an optional Independent Variable-Elevation Drillers Cabin. Raising the operator's line-of-sight provides unmatched visibility over the entire casing assembly area, drastically lowering labor strain and boosting field safety.
- Certified API Spec 4F & ISO HSE Compliance: The heavy-duty drilling masts and structures are fully licensed under the official American Petroleum Institute (API) Monogram License (Certificate No. 4F-0504, Valid until August 9, 2027) and fabricated under strict ISO 9001, ISO 14001, and ISO 45001 integrated guidelines.
Technical Specifications Table
| Category / Parameter Item | Technical Specifications |
|---|---|
| POWER UNIT & ENGINE SYSTEM | |
| Main Engine Model | Dongfeng Cummins QSM15 77C (Turbocharged) |
| Maximum Output Power | 563 kW |
| System Control Form | Electro-Hydraulic Integrated Control |
| Operator Station Options | Independent Elevating Driller's Cabin (Optional) |
| DRILLING METHOD & CAPACITY | |
| Drilling Method Capabilities | Air DTH Hammer, Mud Circulation, Reverse Circulation |
| Maximum Drilling Borehole Diameter | 820 mm |
| Applicable Drill Rod Diameters | 114 mm / 127 mm |
| FEED & HOISTING SYSTEM | |
| Maximum Hoisting Capacity (Pullback Force) | 130 T (1,300 kN) |
| Maximum Pulldown Capacity (Thrust Force) | 26 T (260 kN) |
| ROTATION HEAD ASSEMBLY (Top Drive) | |
| Maximum Spindle Rotation Torque | 35,000 N•m |
| Maximum Spindle Rotation Speed | 200 rpm |
| MAST & WORKTABLE STRUCTURAL ARRAY | |
| Total Mast Length | 15.2 m |
| Top Drive Continuous Stroke Distance | 15.2 m |
| Centralizer Worktable Height Adjustment Range | 1.35 m ~ 2.2 m (BOP Compatible) |
| Mast Slide Displacement Stroke | 2.7 m |
| AUXILIARY HOIST & JIB CRANE | |
| Auxiliary Tool Winch Lifting Capacity | 3.5 T (35 kN) |
| Auxiliary Utility Tool Jib Crane | Mast Side-Mounted (Lateral Swing & Longitudinal Telescopic) |
| MOBILITY & TRACK CHASSIS | |
| Carrier Framework Chassis Type | Heavy Duty Integrated Steel Crawler Chassis |
| Tramming Mobility Control Form | Wireless Radio Remote Walking Control |
| Maximum Gradeability (Climbing) | 18° |
| Maximum Tramming Speed | 1.9 km/h |
| PHYSICAL DIMENSIONS & WEIGHT | |
| Transport Enclosure Dimensions (L × W × H) | 15.2 × 3 × 3.6 m |
| Total Gross Rig Structural Weight | Approx. 60,000 kg (60 tons) |
