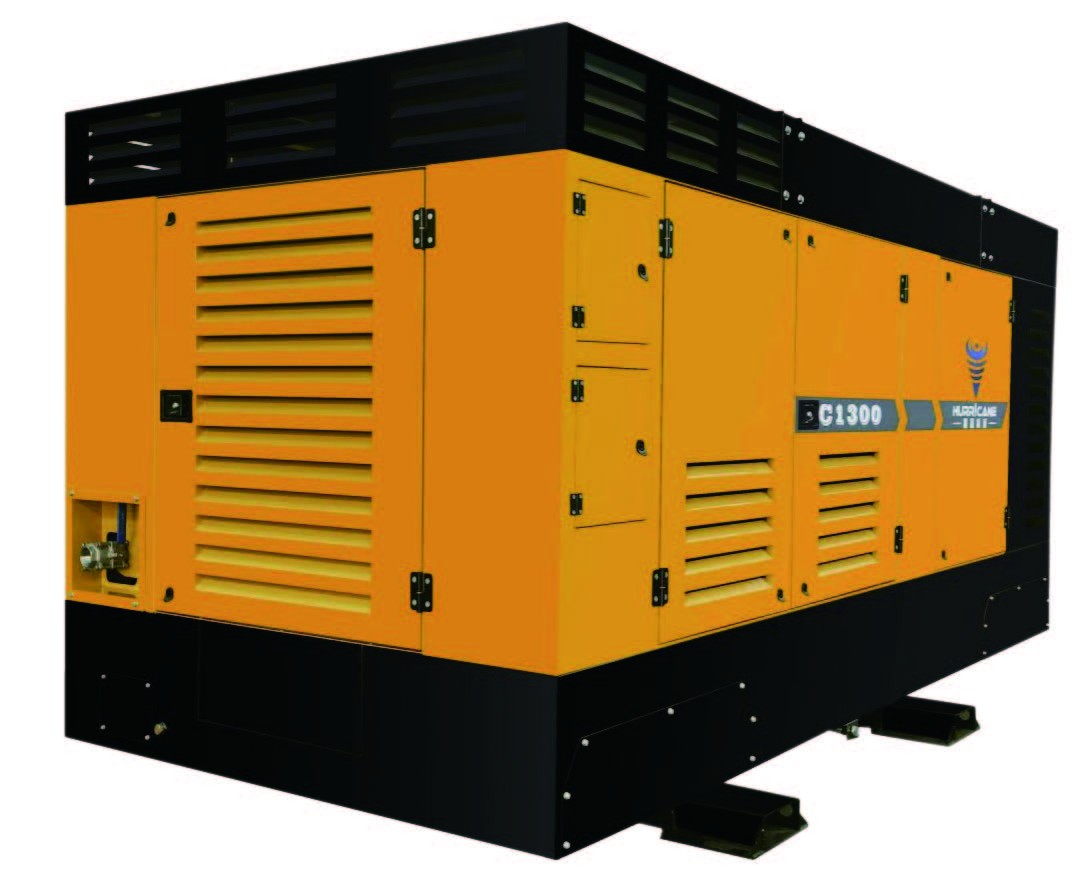

C-Series Diesel Air Compressors for Drilling
Power your operations with the C-Series Diesel Air Compressors. Featuring Cummins/Volvo engines, 15-40 bar pressure, and specialized High-Altitude/Low-Temp packages. Ideal for core & large-diameter drilling rigs.
C-Series Diesel Air Compressors: High-Performance Air Supply for Drilling Rigs
Manufactured under ISO 9001/14001/45001 Systems by Jinneng Holding Equipment Manufacturing Group | A Member of Jinneng Holding Group (Fortune Global 500 Enterprise)
When it comes to demanding drilling applications, reliability and raw power are non-negotiable. Our C-Series Diesel Air Compressors are engineered as the ultimate air source for heavy-duty operations, specifically designed to provide seamless integration and superior performance for our company's core drilling rigs and large-diameter drilling equipment.Built for rugged terrains and continuous operation, this series combines high-efficiency screw compression technology with robust diesel engines to ensure your drilling projects proceed without interruption.
Technical Specifications
The C-Series offers a wide range of models to match various drilling scale requirements, from the C1100 to the high-capacity V1525H.C-Series Main Technical Parameters
| Item | Specification | C1100 | C1100-IV | Y1100 | C1300 | C1400 | C1588 | C1688 | V1588 | V1525H |
|---|---|---|---|---|---|---|---|---|---|---|
| Compressor | FAD (m³/min) | 30-26 | 31-27.5 | 32-25 | 36.8-32 | 40-35 | 45-36.8 | 48.5-45 | 45-40 | 43.2-38-35 |
| Working Pressure Range (bar) | 15-25 | 15-25 | 15-30 | 18-34 | 18-35 | 15-35 | 15-20 | 25-35 | 25-35-40 | |
| Lubricating Oil Capacity (L) | 110 | 120 | 140 | |||||||
| Fuel Tank Capacity (L) | 500 | 400 | 700 | 940 | 1100 | |||||
| Engine | Manufacturer | Cummins | Cummins | Yuchai | Cummins | Cummins | Cummins | Volvo | ||
| Model | L9 PLUS T3 | L9CS4 430C | YC6MK400-H300 | QSZ13-C550-30 | QSM15-C77 | QSM15 C77 | TAD1643VE | |||
| Rated Power (kW) | 294 | 316 | 295 | 410 | 563 | 563 | 565 | |||
| Operating Speed (rpm) | 1850 | 1900/1650 | 1900/1650 | 1900/1700 | 1900/1700 | 1900/1600 | 1750/1650 | 1850/1650 | 1900/1700/1600 | |
| Unloading Speed (rpm) | 1400 | 1400 | 1400 | 1400 | 1350 | 1350 | 1350 | |||
| Weight | Skid-mounted (kg) | 4000 | 4500 | 5000 | 6000 | 6200 | 6500 | 6800 | ||
| Trailer-mounted (kg) | 4750 | 5300 | 5800 | 6800 | 7000 | 7500 | 7800 | |||
| Dimensions | Skid-mounted (mm) | 3200×1860×2250 | 3550×1860×2150 | 3850×1800×2250 | 4150×2000×2350 | 4850×2150×2450 | 4850×2150×2450 | 4850×2150×2450 | 4850×2150×2450 | 4850×2150×2450 |
| Trailer-mounted (mm) | 3750×1860×2550 | 3750×1860×2550 | 4150×1800×2450 | 4450×2000×2550 | 5400×2150×2600 | 5400×2150×2600 | 5400×2150×2600 | 5400×2150×2600 | 5400×2150×2600 | |
| Optional Config | Low Temp Package | Optional | Standard | |||||||
| High Altitude Package | Optional |
Engineered for Compatibility
As a manufacturer, we understand that an air compressor is only as good as its integration with the drilling rig. The C-Series is specifically tuned to serve as the primary air supply for:Core Drilling Rigs: Providing the consistent high-pressure air required for reverse circulation (RC) drilling and sample retrieval.
Large-Diameter Drilling Rigs: Delivering the massive air volume (up to 48.5 m³/min) necessary for down-the-hole (DTH) hammer operations in construction and mining.
The direct coupling design between the diesel engine and the (screw air end) ensures maximum energy transfer efficiency, reducing fuel consumption while maximizing the air output for your drilling tools.
Key Components & Reliability
We utilize world-class components to ensure the longevity of your investment:Heavy-Duty Engines: Featuring engines from Cummins, Yuchai, and Volvo, these power units are selected for their torque characteristics and durability in harsh environments.
Screw Air End: The heart of the machine, designed for continuous duty cycles often encountered in drilling camps.
Intelligent Controller: Monitors critical parameters such as pressure, temperature, and engine speed to protect the unit during operation.
Operating in Extreme Conditions
Drilling sites are often located in challenging environments. To ensure your C-Series compressor performs reliably, we offer specific configuration packages:Low-Temperature Package (Optional): Recommended for ambient temperatures below -10°C. This package includes engine block heaters and cold-flow hydraulic oil to ensure easy starts and smooth operation in freezing conditions.
High-Altitude Package (Optional): Required for operations above 3,000 meters. This configuration adjusts the engine turbocharging and cooling systems to compensate for thin air, maintaining full power output on high plateaus.
Whether you are operating a C1100 on a small exploration site or a V1525H on a major infrastructure project, our C-Series delivers the proven performance you expect from an industry leader in drilling solutions.
Frequently Asked Questions (FAQ)
1.Which drilling rigs are compatible with the C-Series Diesel Air Compressors?
The C-Series is specifically engineered to power core drilling rigs and large-diameter drilling rigs. Models like the C1100 and C1300 are ideal for mineral exploration and water well drilling, while high-capacity models like the C1588 and V1525H provide the necessary air volume and pressure for heavy-duty construction piling and large-scale DTH (Down-the-Hole) hammer operations.2.Can these compressors operate at high altitudes?
Yes. Standard diesel engines lose power at high elevations due to thin air. However, for operations above 3,000 meters, we offer a specialized High-Altitude Package. This configuration optimizes the engine's turbocharging and cooling systems (available for Cummins and Volvo engine models) to maintain rated power and prevent overheating in plateau environments.3.Is the C-Series suitable for cold weather drilling projects?
Absolutely. If your drilling site experiences ambient temperatures below -10°C, we highly recommend selecting the Low-Temperature Package. This optional configuration includes essential components like engine block heaters and low-viscosity lubricants to ensure reliable cold starts and stable hydraulic performance in freezing conditions.4.What engine brands are used in the C-Series compressors?
To ensure global reliability and ease of maintenance, we equip the C-Series with top-tier engines. Depending on the model, the compressors are powered by Cummins, Volvo, or Yuchai engines. These manufacturers are chosen for their high torque reserve and durability in rugged drilling terrains.5.What is the difference between Skid Mount and Trailer Mount versions?
Skid Mount: Designed for permanent installation on a truck bed or a fixed drilling platform. It is lighter and more compact.Trailer Mount: Comes with a heavy-duty chassis, axle, and towing hitch, offering high mobility for moving between different drilling sites on roads.
