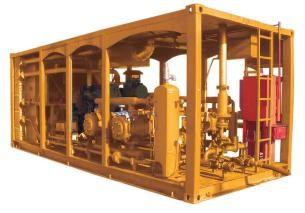

V-Series High-Pressure Booster Compressors
High-performance V-Series Booster Compressors for core & large-diameter drilling. Features Volvo engines, horizontal opposed design, and discharge pressures up to 350 bar. Customizable flow rates available.

V-Series High-Pressure Booster Compressors for Deep Drilling

Manufactured under ISO 9001/14001/45001 Systems by Jinneng Holding Equipment Manufacturing Group | A Member of Jinneng Holding Group (Fortune Global 500 Enterprise)

The V-Series Booster Compressors are engineered specifically to support core drilling rigs and large-diameter drilling rigs. Unlike standard air compressors, these units are designed to take existing air pressure and boost it to extreme levels (up to 350 bar), ensuring efficient cuttings removal and cooling in deep-hole operations.
Whether you are drilling in mining exploration or water well projects, the V-Series offers the flexibility and power needed to tackle the toughest geological conditions.

Key Features and Benefits

Advanced Horizontal Opposed Design

The compressor host utilizes a horizontal opposed structure. This design ensures high rotational speed, low vibration, and a compact footprint, making it stable and easy to transport.

Dual Operating Modes

Equipped to handle varying working conditions, the V-Series can switch modes to meet different construction requirements, optimizing fuel consumption and performance.

Customizable Solutions

We understand that every drilling project is unique. The V-Series can be customized based on your primary air compressor's capabilities, with flow rates from 60-100 m³/min and boosting ranges from 60-200 bar.
 Premium Power Source

Powered by world-renowned Volvo engines (with Caterpillar and Electric Motor options available), ensuring durability and low maintenance costs.

Technical Specifications

Model V60L V60M V60H V60E V100L V100M V100H
Free Air Delivery (m³/min) Max. 70 Max. 60 Max. 50 Max. 40 Max. 120 Max. 100 Max. 80
Inlet Pressure (bar) 20-40 20-40 20-40 20-40 20-40 20-40 20-40
Discharge Pressure (bar) Max. 80 Max. 150 Max. 250 Max. 350 Max. 80 Max. 150 Max. 200
Compression Stages 1 2 3 4 1 2 3
Engine Manufacturer Volvo Volvo Volvo Volvo Volvo Volvo Volvo
Engine Model TAD1345VE TAD1345VE TAD1345VE TAD1345VE TAD1643VE TAD1643VE TAD1643VE
Rated Power (kW) 394 394 394 394 565 565 565
Operating Speed (rpm) 1800 1800 1800 1800 1800 1800 1800
Unloading Speed (rpm) 1400 1400 1400 1400 1400 1400 1400
Weight (Skid-mounted kg) 12,000 12,000 12,500 12,500 16,000 16,000 17,000
Dimensions (Skid mm) 6000x2350x2600 6000x2350x2600 6000x2350x2600 6000x2350x2600 8000x2550x2600 8000x2550x2600 8000x2550x2600

The V-Series is divided into the V60 and V100 families, covering a wide range of pressure and flow requirements.
Note: All models feature a Horizontal Opposed compression type.

Application Scenarios

The V-Series is the ideal companion for heavy-duty drilling applications:

1. Core Drilling

Provides the necessary high-pressure air to lift cuttings from deep boreholes, ensuring clean and efficient drilling operations.

2. Large-Diameter Drilling

Ensures sufficient volume and pressure to clean the hole effectively, preventing blockages and maintaining drilling efficiency.

3. Deep Hole Drilling

The multi-stage compression (up to 4 stages in V60E) allows for extreme pressure boosting, making it suitable for ultra-deep drilling projects.

Main Components

1. Diesel Engine

High-performance Volvo engines ensure stable power output with low fuel consumption and maintenance requirements.

2. Electric Motor

Optional configuration for sites with stable power supply, providing a clean and efficient alternative to diesel power.

3. Booster Compressor Unit

The core component featuring the robust horizontal opposed design, engineered for maximum efficiency and durability.

Frequently Asked Questions (FAQ)

Q1: What is the difference between the V60 and V100 series?

A: The main difference lies in the Free Air Delivery (Flow Rate). The V100 series handles higher volumes (up to 120 m³/min) compared to the V60 series (up to 70 m³/min). Both series can achieve high discharge pressures, but the V60E model offers the highest pressure capability of up to 350 bar.

Q2: Can I use an electric motor instead of a diesel engine?

A: Yes. While the standard configuration features Volvo diesel engines, the V-Series is designed to accept Electric Motors as an optional power source, depending on your site's power availability.

Q3: What is the inlet pressure requirement?

A: The V-Series is designed to work with an inlet pressure range of 20-40 bar. It acts as a booster, taking air from a primary compressor and increasing the pressure further.

Q4: What are the operating modes available?

A: The V-Series features dual operating modes to handle varying working conditions, allowing the unit to switch between modes to meet different construction requirements and optimize performance.

Q5: Is customization available for specific project requirements?

A: Yes, the V-Series can be customized based on your primary air compressor's capabilities, with flow rates from 60-100 m³/min and boosting ranges from 60-200 bar.
