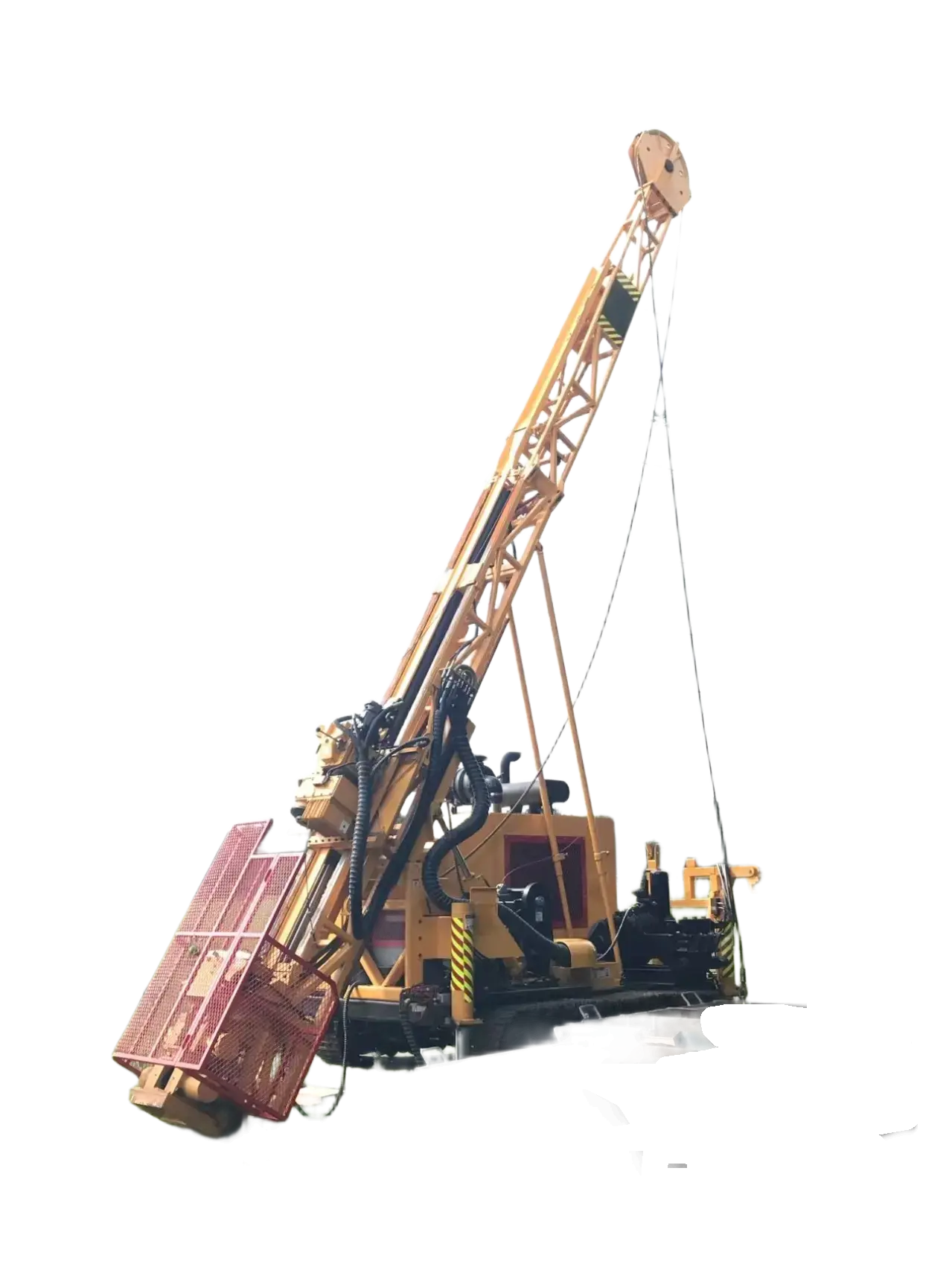

ORTECH® CSD1800X Full Hydraulic Surface Core Drilling Rig
Manufactured by Jinneng Holding Equipment Manufacturing Group | A Member of Jinneng Holding Group (Fortune Global 500 Enterprise)
Product Overview
The CORTECH® CSD1800X is a premier, heavy-duty full hydraulic surface core drilling rig, exclusively engineered for high-precision exploration in solid mineral deposits. Built to operate seamlessly across diverse and challenging geological landscapes, this premium exploration drill excels in deep-hole sampling projects. It supports advanced diamond wireline core drilling technology, enabling global mining contractors and geological exploration bureaus to achieve unmatched core recovery rates in complex and unpredictable strata.
With all operations and functions powered by an advanced top-drive hydraulic system, the CSD1800X delivers remarkable precise control, easy operation, and high efficiency. Its adaptable and robust design makes it a standard-setting choice for mineral exploration, grouting engineering, and specialized geotechnical investigation projects worldwide. It represents a significant advancement in reducing onsite labor intensity and driving down overall drilling costs per meter.
Key Advantages & Engineering Features
· Deep-Hole Wireline Coring Excellence: Specially optimized for deep solid mineral exploration, capable of extracting intact, continuous geological core samples up to 2,000 meters deep (B size), ensuring high sample integrity for precise assaying.
· Full Hydraulic Top Drive with Lateral Side-Shift: All major functions are fully hydraulic-driven, eliminating traditional mechanical wear and guaranteeing steady torque output (up to 5,500 Nm). The innovative power head features a lateral side-shift mechanism, sliding horizontally away from the borehole center to provide effortless clearance for lifting and dropping drill strings.
· Premium Power & All-Climate Cooling Integration: Driven by an industry-proven Cummins B6.7CS4 260C Turbocharged Engine delivering 194 kW, coupled with a 28 MPa heavy-duty hydraulic system and an efficient air-cooling module, guaranteeing uninterrupted top-drive output even in extreme working environments.
· Exceptional All-Terrain Agility & Mobility: Outfitted with heavy-duty crawler tracks supporting a 30-degree maximum climbing capacity and a 2 km/h travel speed. Combined with its compact transport layout (5,530 x 2,350 x 2,850 mm, weighing 11.3 tons), it easily navigates rugged mountainous terrains and narrow trails.
· Maximum Return on Investment (ROI): High penetration rates, excellent hole straightness, durable build quality, and reduced auxiliary tripping time drastically minimize operational downtime, keeping your exploration projects ahead of schedule.
Technical Specifications Table
| Category / Parameter Item | Technical Specifications |
|---|---|
| DRILLING CAPACITY (Reference) | |
| Diamond Core Drilling — B Size (55.5 mm) | Max. Depth: 2,000 m |
| Diamond Core Drilling — N Size (71 mm) | Max. Depth: 1,700 m |
| Diamond Core Drilling — H Size (89 mm) | Max. Depth: 1,200 m |
| Diamond Core Drilling — P Size (114 mm) | Max. Depth: 700 m |
| HYDRAULIC SYSTEM | |
| Hydraulic System Rated Pressure | 28 MPa |
| Cooling Method | Air Cooling |
| POWER UNIT & ENGINE | |
| Engine Model | Cummins B6.7CS4 260C |
| Engine Type | Turbocharged |
| Rated Engine Power | 194 kW |
| Rated Engine Speed | 2,200 rpm |
| ROTATION & FEED SYSTEM (Top Drive) | |
| Max. Rotation Torque | 5,500 Nm |
| Max. Rotation Speed | 1,050 rpm |
| Feed Head Stroke | 3,500 mm |
| Spindle Thru-Hole Diameter | 117 mm |
| Max. Lifting Force / Max. Feed Force | 189 kN / 50 kN |
| MAIN WINCH SYSTEM | |
| Main Winch Lifting Capacity | 135 kN |
| Main Winch Lifting Speed | 33 m/min (Low Speed) | 49 m/min (High Speed) |
| Main Winch Wire Rope Diameter | 22 mm |
| Main Winch Drum Rope Capacity | 35 m |
| WIRELINE WINCH SYSTEM | |
| Wireline Winch Lifting Capacity | 11 kN (Bare Drum) |
| Wireline Winch Lifting Speed | 120 m/min |
| Wireline Winch Wire Rope Diameter | 6.6 mm |
| Wireline Winch Drum Rope Capacity | 1,500 m |
| MAST & CLAMPING MECHANISM | |
| Total Mast Height | 10 m |
| Drilling Operating Angle | 45° - 90° |
| Mast Slide Stroke | 1.1 m |
| Foot Clamp Holder Compatibility | B, N, H, P (Drill Rods) |
| TRAMMING & MOBILITY (Crawler-mounted) | |
| Max. Climbing Capacity | 30° |
| Max. Tramming Speed | 2 km/h |
| PHYSICAL DIMENSIONS & WEIGHT | |
| Transport Dimensions (L x W x H) | 5,530 x 2,350 x 2,850 mm |
| Total Gross Weight | 11.3 tons |
Q1: What is the maximum drilling capacity of the CORTECH® CSD1800X core drill rig?
A1: The maximum drilling depth of the CORTECH® CSD1800X depends entirely on the selection of your wireline drill rod diameter. For standard solid mineral exploration, its reference depth capacities are: 2,000 meters with B size rods (55.5mm), 1,700 meters with N size rods (71mm), 1,200 meters with H size rods (89mm), and 700 meters with P size rods (114mm).
Q2: Why does the CSD1800X drill rig feature a lateral side-shift top drive head?
A2: The lateral side-shift power head is a major efficiency feature of the CSD1800X. It allows the top drive mechanism to hydraulically slide horizontally away from the borehole center. This clear opening dramatically simplifies and speeds up the tripping process when operators are lifting or dropping heavy drill strings, resulting in a higher core recovery rate and reduced auxiliary field labor.
Q3: Is the CSD1800X core drilling rig suitable for rough mountainous environments?
A3: Absolutely. The CSD1800X is designed with an integrated crawler track system and a highly compact transport footprint (5,530 x 2,350 x 2,850 mm, weighing 11.3 tons). It possesses a 30-degree maximum climbing capability and an agile 2 km/h travel speed, which allows the heavy equipment to navigate rugged terrains, narrow mountain trails, and remote exploration sites with minimal relocation difficulty.
Q4: What engine and hydraulic configurations drive the CSD1800X exploration rig?
A4: The rig is powered by a high-performance, industry-proven Cummins B6.7CS4 260C Turbocharged Engine, delivering a rated power of 194 kW at 2,200 rpm. This power plant is seamlessly coupled with a 28 MPa heavy-duty hydraulic system and an efficient air-cooling module, ensuring stable, uninterrupted torque output of up to 5,500 Nm even during intensive deep-hole coring cycles.
